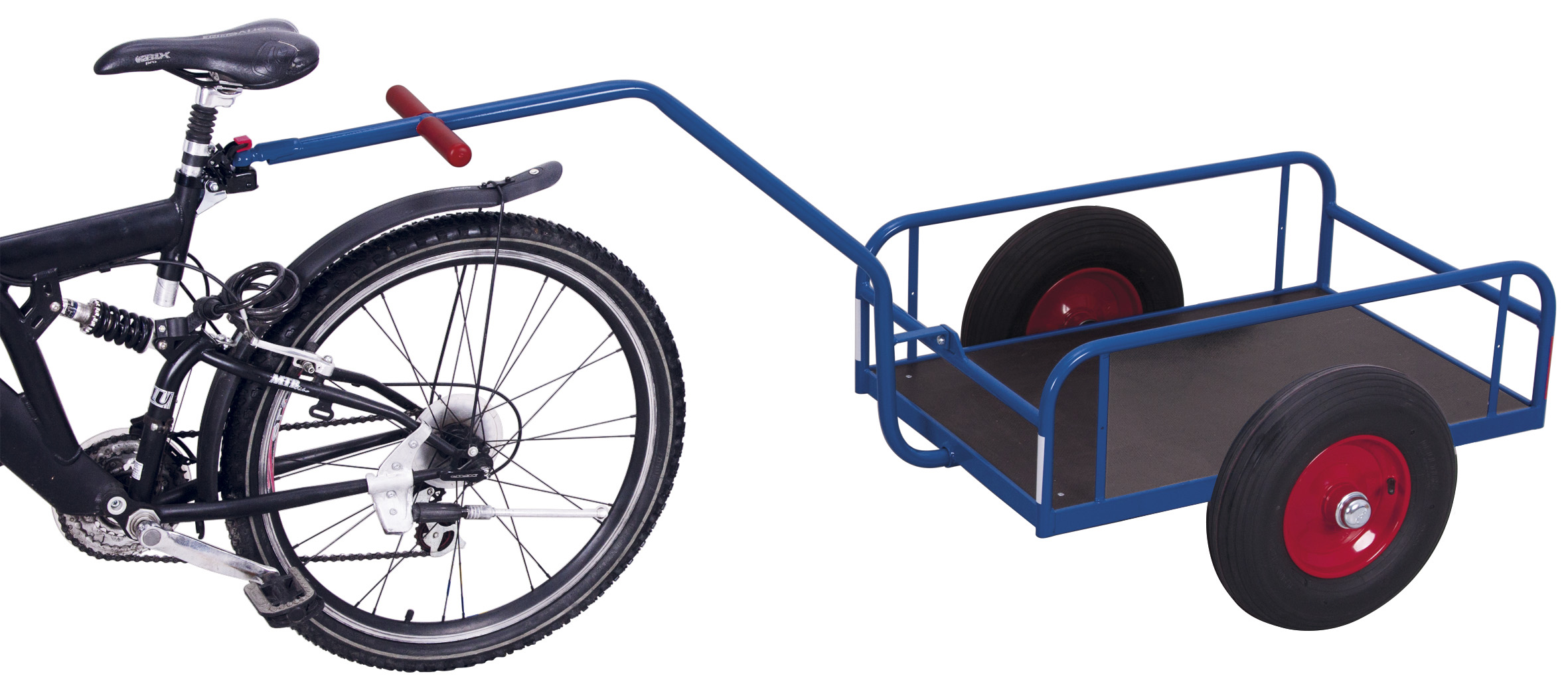

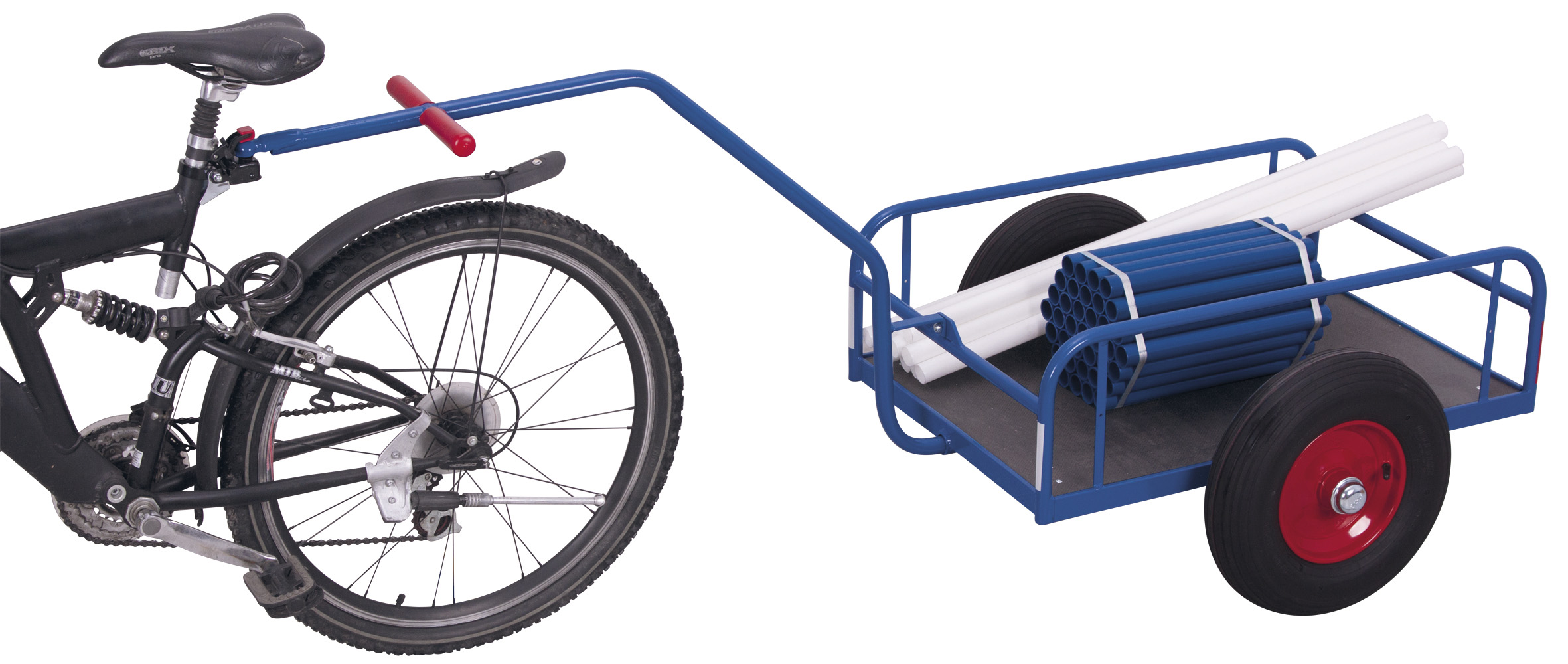

Bicycle trailer without side walls
| Colour: | RAL 5010 |
|---|---|
| Dimensions - width x depth x height (mm): | 1835 x 810 x 810 |
| Load capacity (kg): | 400 |
| Loading Surface - width x depth (mm): | 825 x 535 |
| Weight (kg): | 24,0 |
| Wheelset: | Luftbereifung |
| Wheel width (mm): | 100 |
| Wheel Ø (mm): | 400 |
GTIN/EAN:
4035694006928
Product number:
zu-1381
Product information "Bicycle trailer without side walls"
Welded steel construciton
Railing 220 mm high
With reflective films
All bicycle trailers are supplied with bolted drawbar with welded-on hemispherical shell and plastic handles
The ball socket is welded to the towbar
The ball head with clamp is supplied loose for the user to fit to the cycle frame
Universal fitting with adaptor for saddle tubes from 26,0 mm - 31,0 mm
Maximum load: 40 kg
Lean load: 4 kg
Load surface of waterproof bonded plywood, surface finish screen printed, anti-slip
Permanent surface protection
Impact- and scratch-resistant
Pneumatic tyres on plastic wheel rim with ball bearings. Bicycle trailer only for internal material-transport.
Railing 220 mm high
With reflective films
All bicycle trailers are supplied with bolted drawbar with welded-on hemispherical shell and plastic handles
The ball socket is welded to the towbar
The ball head with clamp is supplied loose for the user to fit to the cycle frame
Universal fitting with adaptor for saddle tubes from 26,0 mm - 31,0 mm
Maximum load: 40 kg
Lean load: 4 kg
Load surface of waterproof bonded plywood, surface finish screen printed, anti-slip
Permanent surface protection
Impact- and scratch-resistant
Pneumatic tyres on plastic wheel rim with ball bearings. Bicycle trailer only for internal material-transport.
| Colour: | RAL 5010 |
|---|---|
| Dimensions - width x depth x height (mm): | 1835 x 810 x 810 |
| Load capacity (kg): | 400 |
| Loading Surface - width x depth (mm): | 825 x 535 |
| Weight (kg): | 24,0 |
| Wheelset: | Luftbereifung |
| Wheel width (mm): | 100 |
| Wheel Ø (mm): | 400 |
