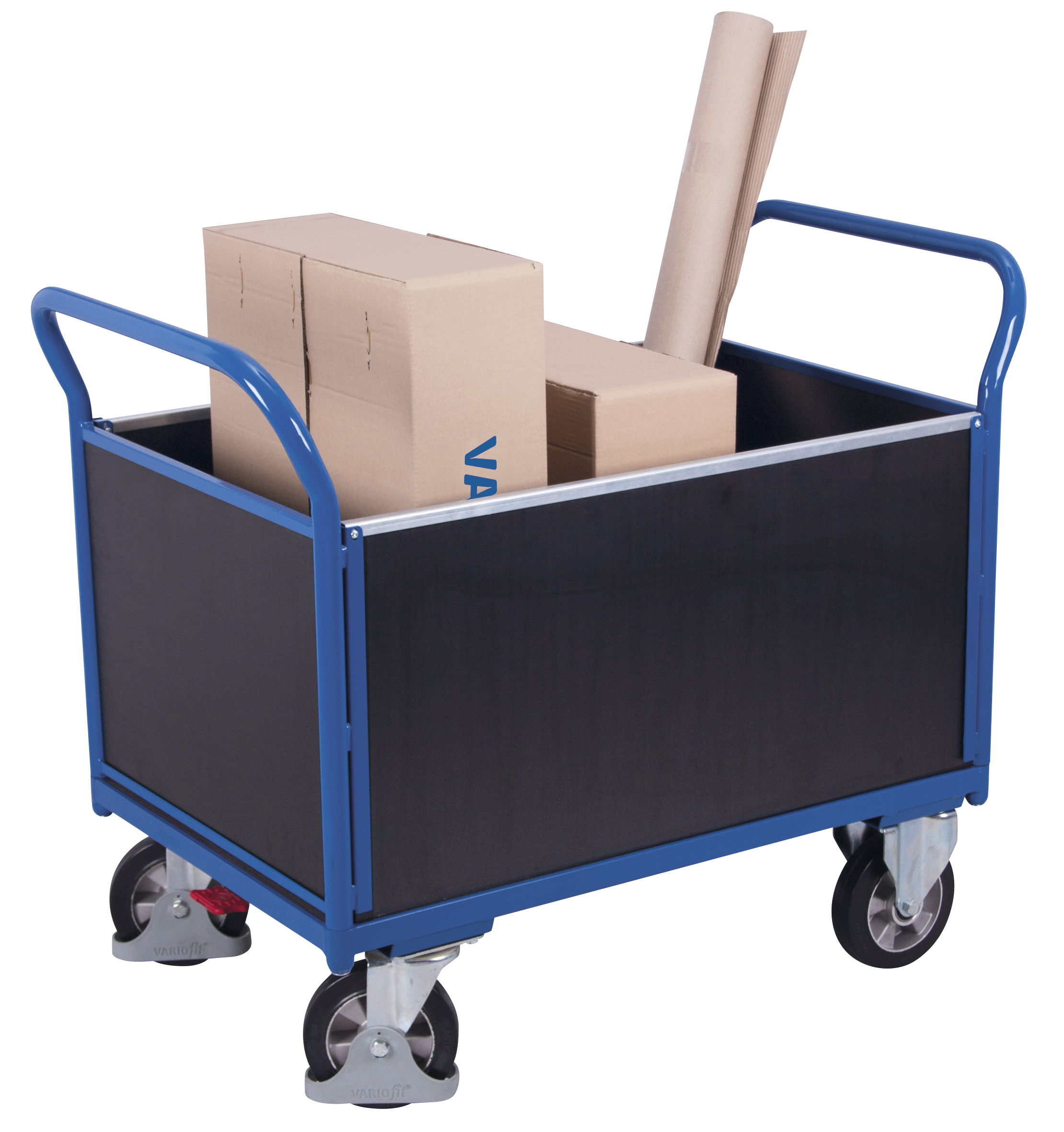

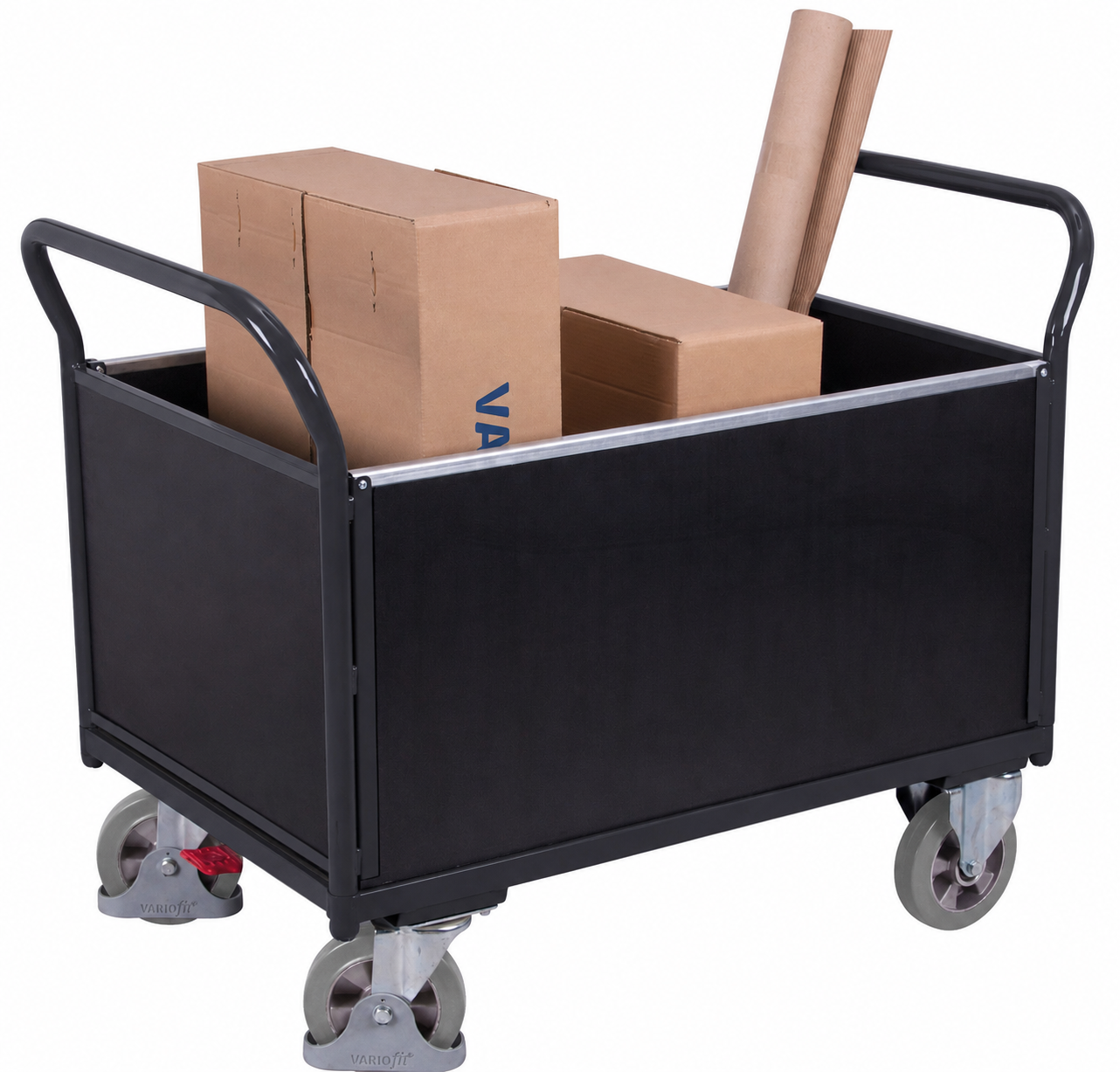

Four-sided trolley with screen printing plate
Vierwandwagen mit Siebdruckplatte
Robust, modular and ready for heavy-duty work: the Vierwandwagen mit Siebdruckplatte combines a smart modular system with a durable base structure. Its waterproof bonded plywood load surface and walls feature an anti-slip, screen-printed finish for secure transport.

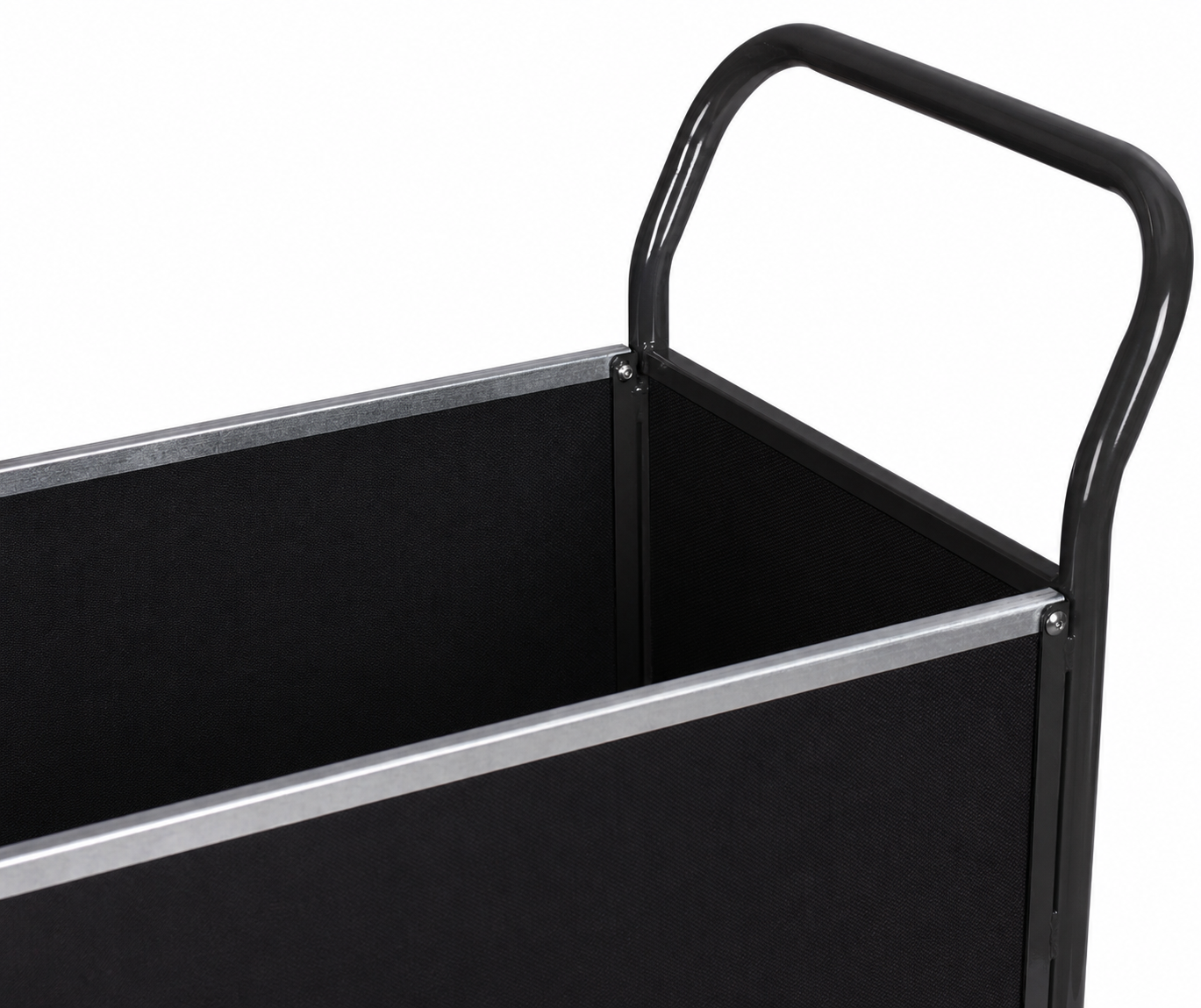

Removable 500 mm high side walls offer flexible loading, while the surface is permanently protected, impact- and scratch-resistant. Elastic solid-rubber tyres on cast aluminium rims with deep-groove ball bearings and foot guard ensure smooth, quiet running. The patented EasySTOP brake system with 2 swivel castors and 2 fixed castors provides safe, effortless handling in demanding environments.
| Colour: | RAL 7016 |
|---|---|
| Dimensions - width x depth x height (mm): | 1195 x 700 x 1015 |
| Load capacity (kg): | 1000 |
| Loading Surface - width x depth (mm): | 995 x 650 |
| Weight (kg): | 58,5 |
| Wheel width (mm): | 50 |
| Wheel Ø (mm): | 200 |
