Stanchion trolley
| Colour: | RAL 7016 |
|---|---|
| Dimensions - width x depth x height (mm): | 1680 x 880 x 930 |
| Load capacity (kg): | 1200 |
| Loading Surface - width x depth (mm): | 1680 x 805 |
| Weight (kg): | 57,0 |
| Wheelset: | Elastikvollgummi |
| Wheel width (mm): | 50 |
| Wheel Ø (mm): | 200 |
Pick your accessory
€0.00*
GTIN/EAN:
4035694081734
Product number:
sw-1600/AG

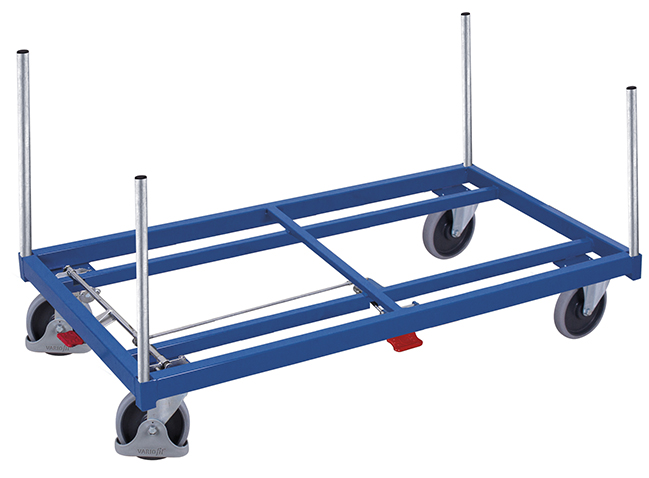

Product information "Stanchion trolley"
Modular system
Welded steel construction
Permanent surface protection
Impact- and scratch-resistant
Plug-in stanchion
Length of stanchion: 625 mm
Grey non-marking thermoplastic rubber tyres on plastic wheel rim with precision deepgroove ball bearings
Thread guard and foot guard
2 swivel castors with brakes and 2 fixed castors
1.200 kg carrying capacity: Elastic solid-rubber tyres on cast aluminium wheel rim with precision deepgroove ball bearings with foot guard
2 swivel castors with central foot brake EasySTOP and 2 fixed castors (EasySTOP can be operated on one longitudinal and narrow side).
Welded steel construction
Permanent surface protection
Impact- and scratch-resistant
Plug-in stanchion
Length of stanchion: 625 mm
Grey non-marking thermoplastic rubber tyres on plastic wheel rim with precision deepgroove ball bearings
Thread guard and foot guard
2 swivel castors with brakes and 2 fixed castors
1.200 kg carrying capacity: Elastic solid-rubber tyres on cast aluminium wheel rim with precision deepgroove ball bearings with foot guard
2 swivel castors with central foot brake EasySTOP and 2 fixed castors (EasySTOP can be operated on one longitudinal and narrow side).
| Colour: | RAL 7016 |
|---|---|
| Dimensions - width x depth x height (mm): | 1680 x 880 x 930 |
| Load capacity (kg): | 1200 |
| Loading Surface - width x depth (mm): | 1680 x 805 |
| Weight (kg): | 57,0 |
| Wheelset: | Elastikvollgummi |
| Wheel width (mm): | 50 |
| Wheel Ø (mm): | 200 |
