Tipping unit for steel frame dollies
Kippaufsatz für Fahrgestell

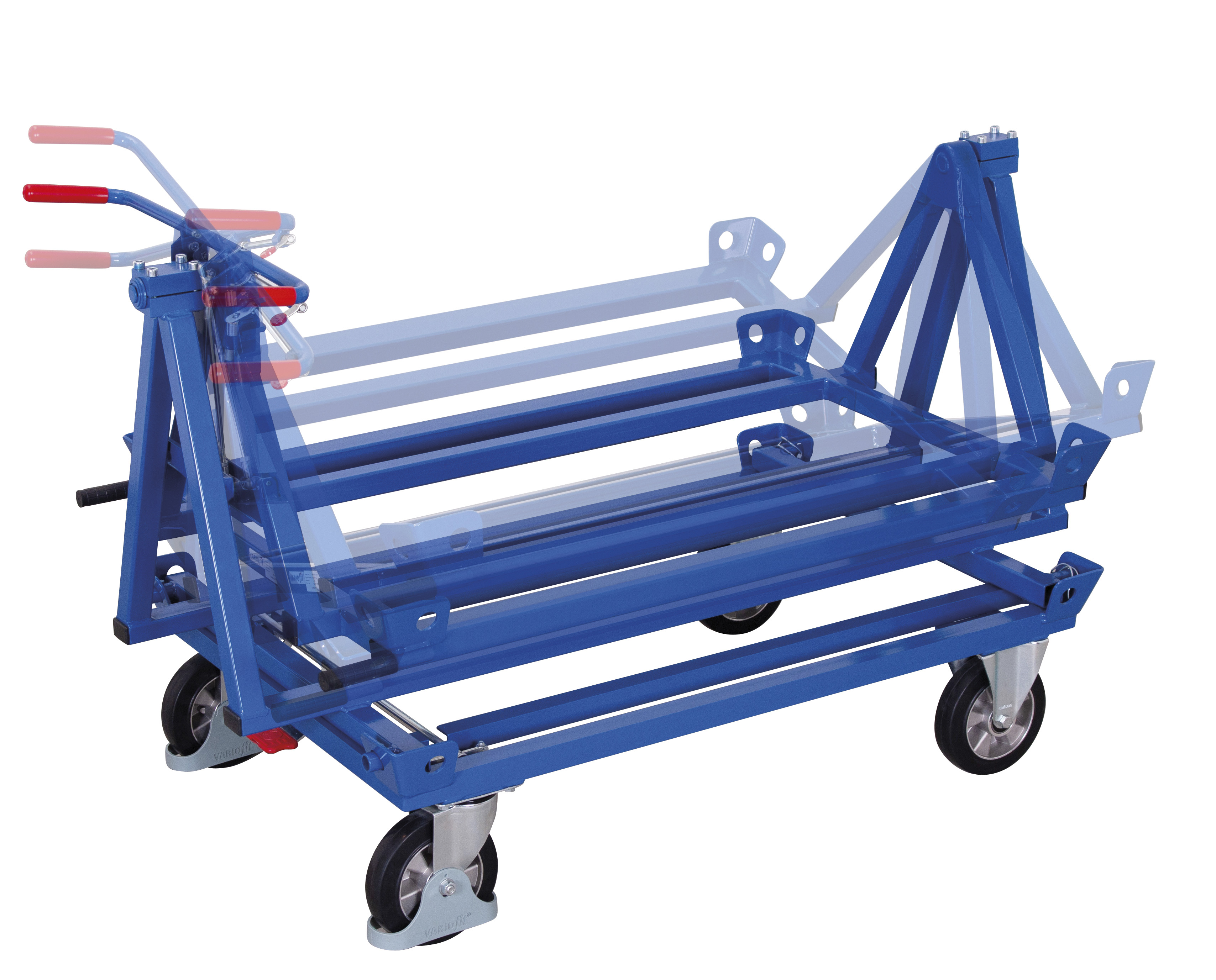

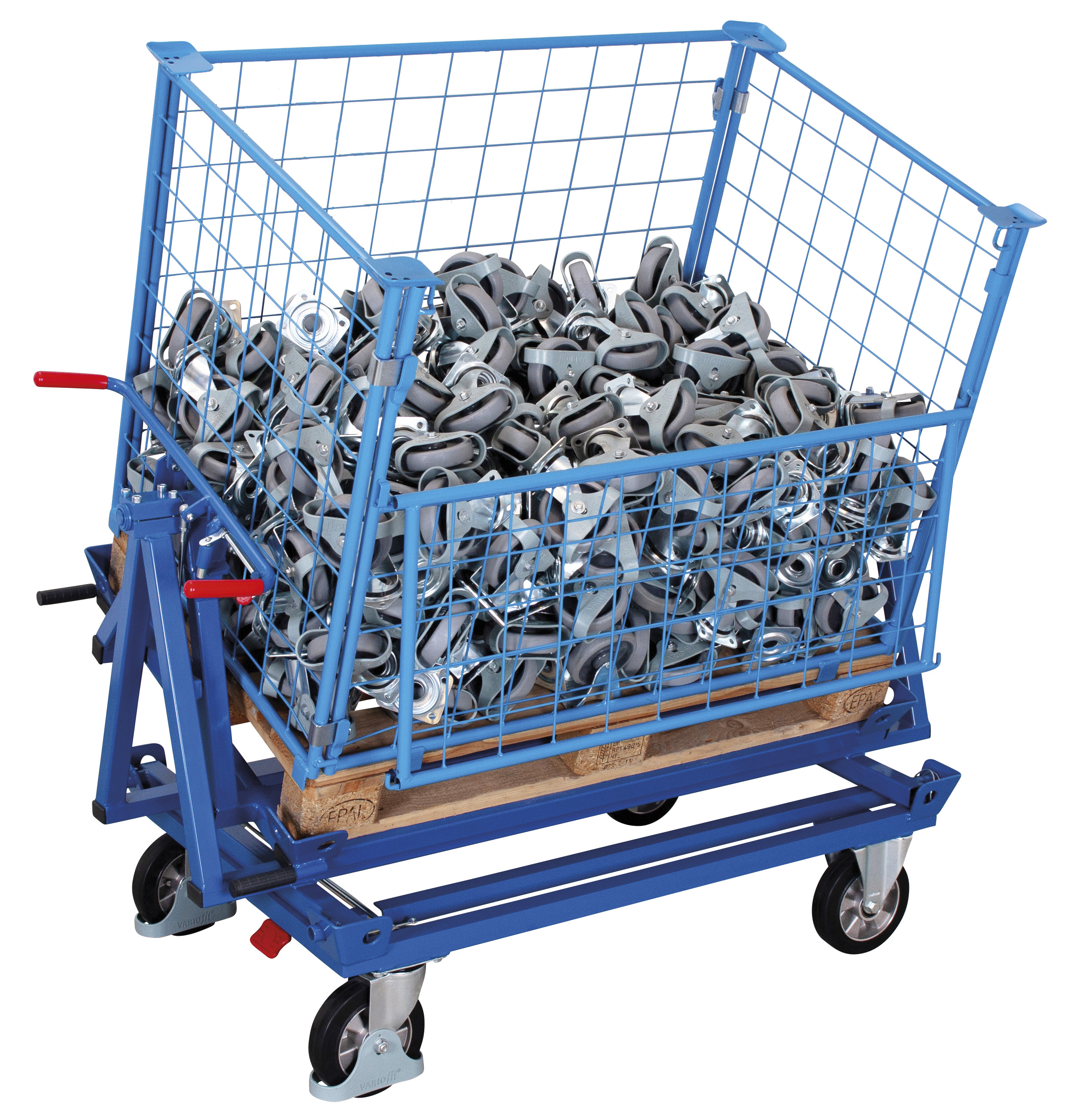

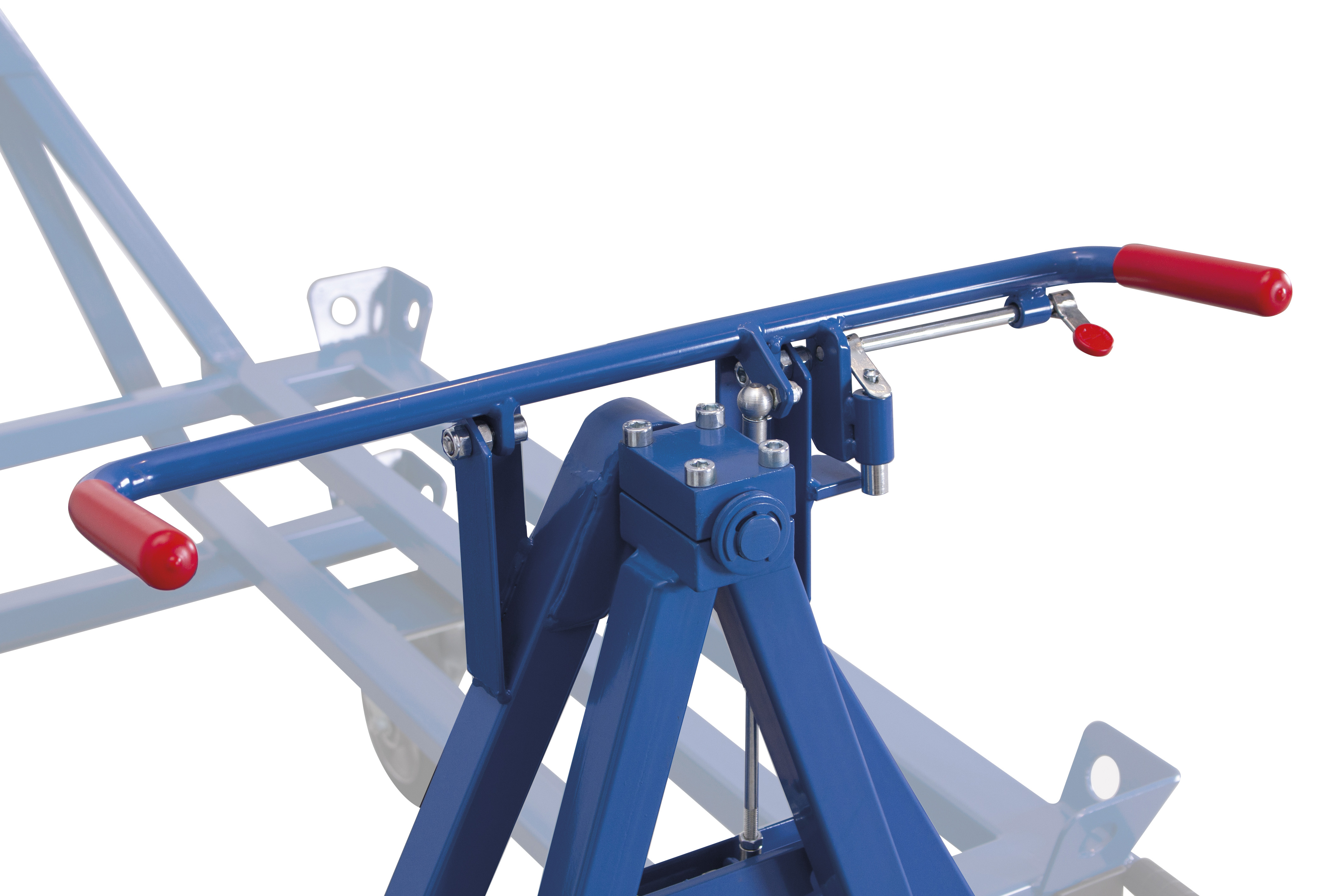

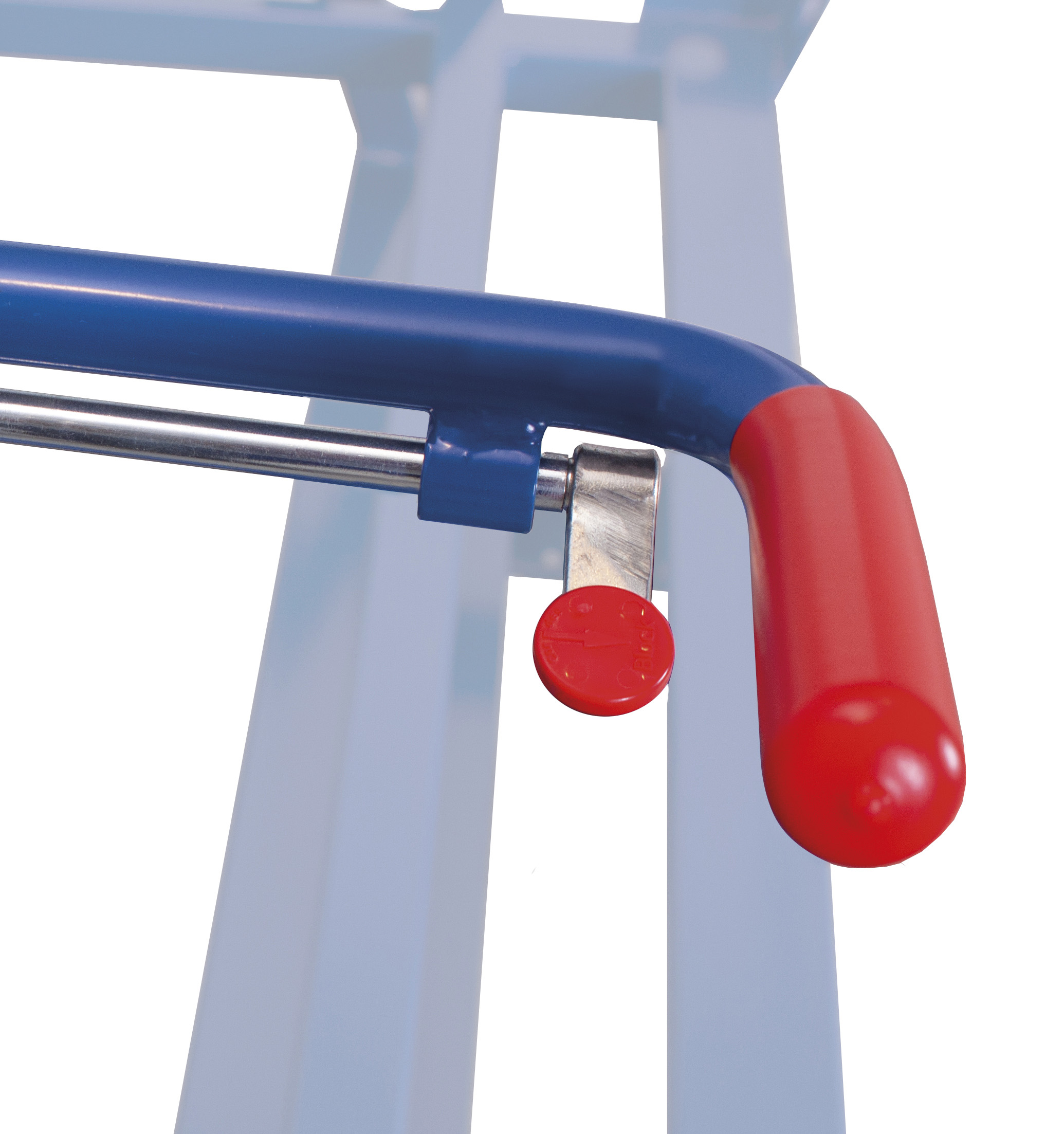

Optimise your material flow with this robust tipping unit for VARIOfit® steel frame dollies. The welded steel construction with strutted load surface delivers reliable, long-term performance. Enjoy controlled tipping of approx. 18° to both sides, a secure three-position locking system and an additional tilt lock on the handle for safe handling.

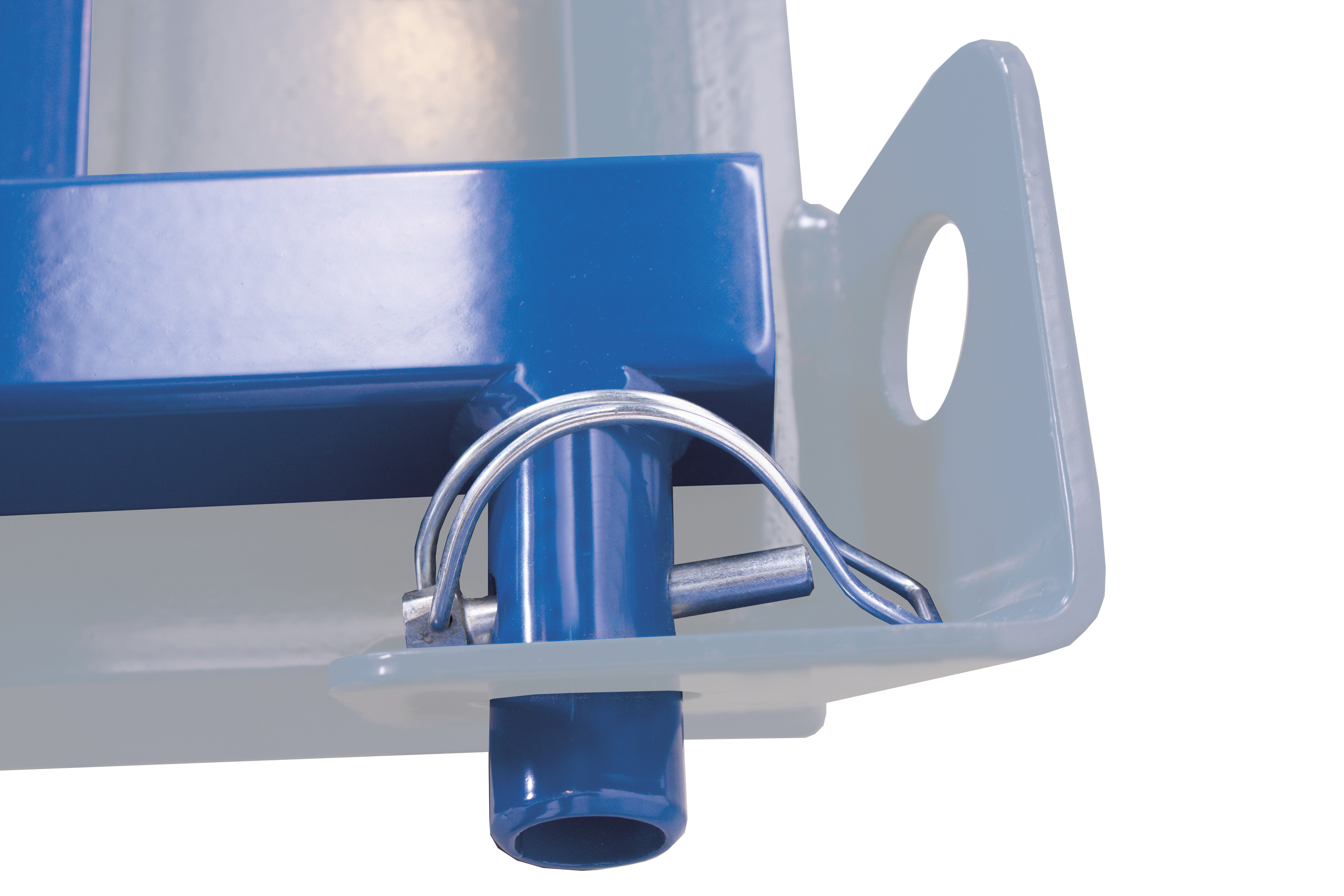

Location cups and lifting rings ensure precise docking and easy transport, while the impact- and scratch-resistant finish guarantees lasting surface protection, even in demanding industrial environments.
| Colour: | RAL 7016 |
|---|---|
| Dimensions - width x depth x height (mm): | 1595 x 870 x 700 |
| Load capacity (kg): | dem Fahrgestell entsprechend |
| Loading Surface - width x depth (mm): | 1210 x 810 |
| Weight (kg): | 83,0 |
| suitable for: | Fahrgestelle mit der Ladefläche 1210 x 810 mm |
