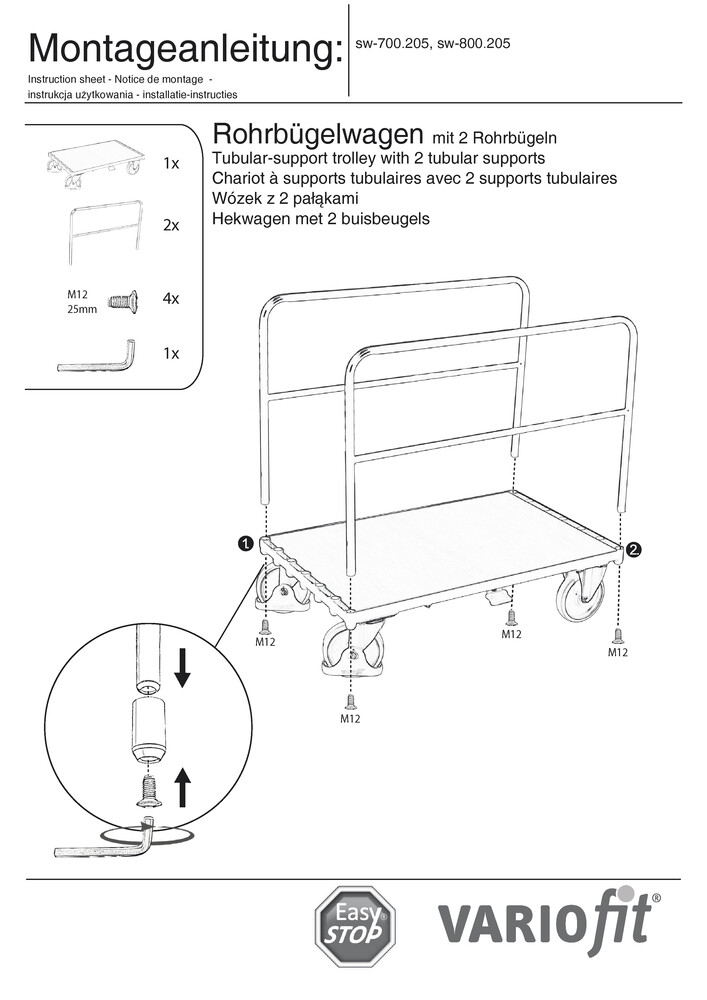

Tubular-support trolley with 2 tubular supports
Rohrbügelwagen mit 2 Rohrbügel
Modular, robust and ready for heavy-duty use
The Rohrbügelwagen with 2 tubular supports is a modular transport solution with an innovative frame section and durable wood-based load surface. Its clever socket system allows flexible positioning of up to 7 tubular supports for diverse loads.
Key features
- Modular system: base structure with innovative frame profile
- Durable deck: robust wood-based board with permanent surface protection
- Flexible supports: incl. 2 tubular supports and 2 rows of sockets for up to 7 supports
- Protected finish: impact- and scratch-resistant for long-lasting use
- Floor-friendly running gear: grey, non-marking thermoplastic rubber tyres on plastic rims
- Smooth running: precision deep-groove ball bearings for quiet, easy manoeuvring
- Safety first: integrated thread and foot guard for secure operation
- Stable mobility: 2 swivel and 2 fixed castors for controlled steering
- Maximum control: patented EasySTOP central foot brake – one swivel and one fixed castor braked on one longitudinal side
| Colour: | RAL 5010 |
|---|---|
| Dimensions - width x depth x height (mm): | 1070 x 700 x 1040 |
| Load capacity (kg): | 500 |
| Loading Surface - width x depth (mm): | 990 x 640 |
| Weight (kg): | 40,5 |
| Wheel width (mm): | 40 |
| Wheel Ø (mm): | 200 |
