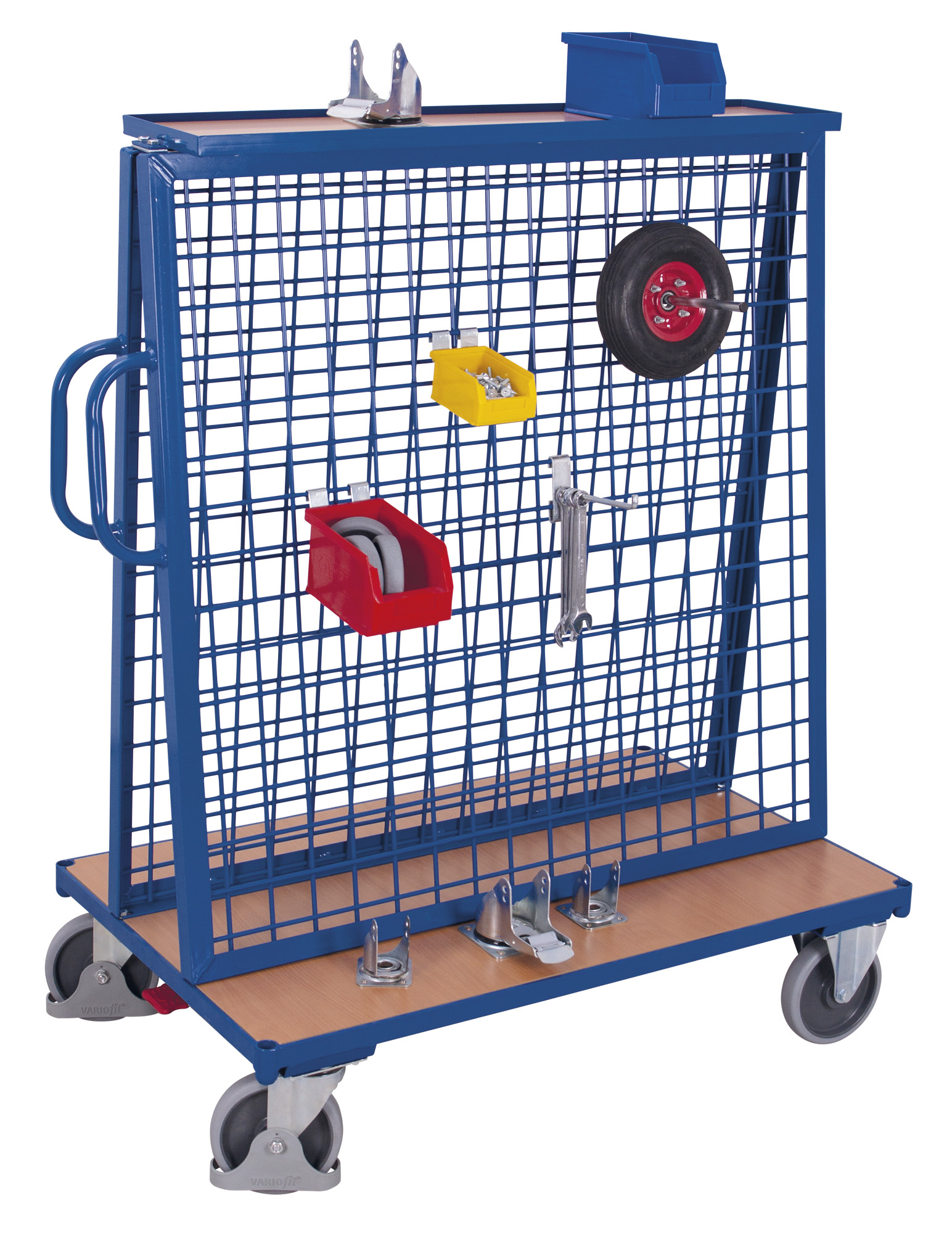

Workpiece trolley with top shelf
€902.28
Base structure with innovative frame section
Load surface of wood-based board

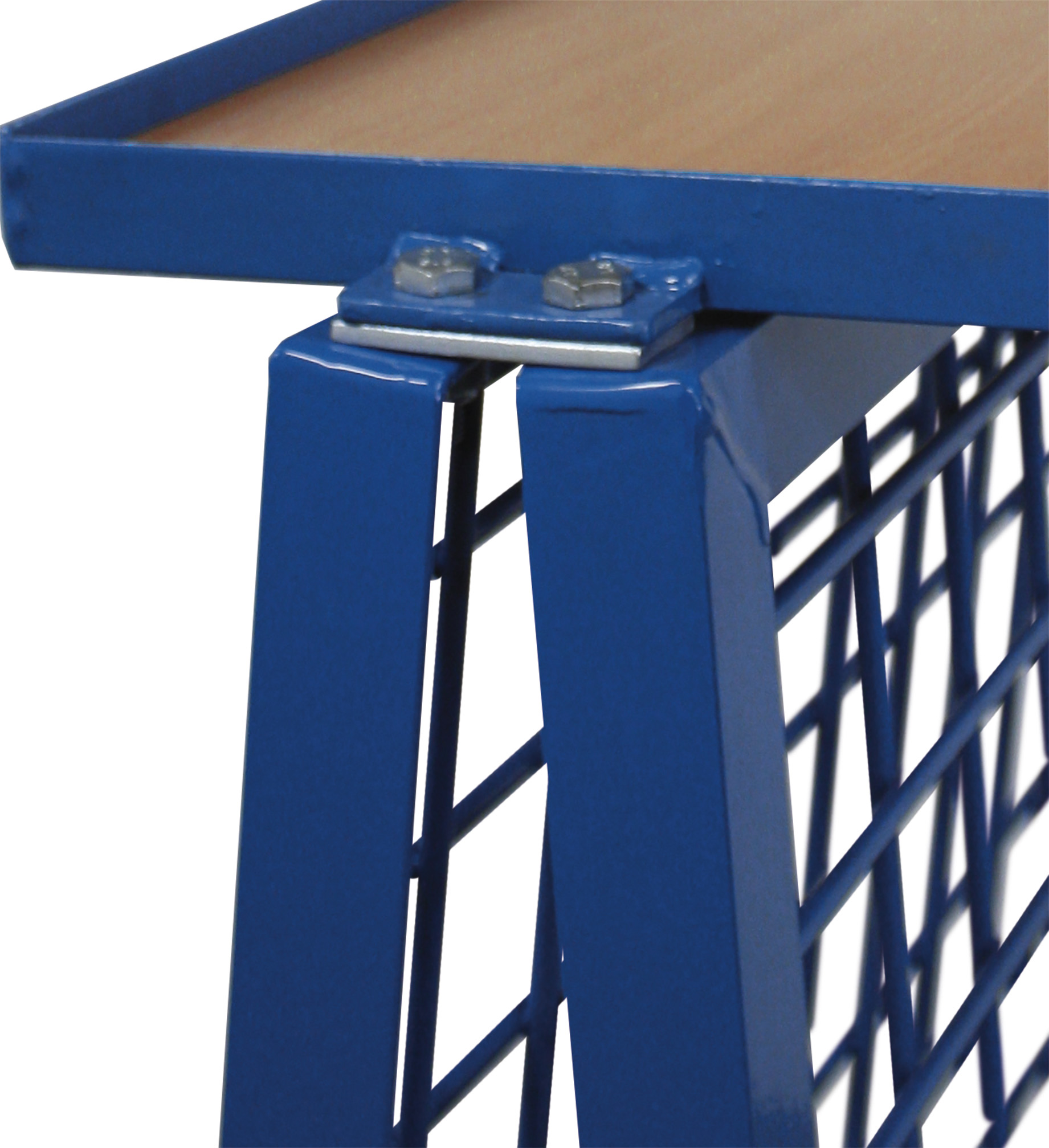

Screwed superstructure made of angle steel with welded mesh 75 x 75 mm
Height of superstructure 1.265 mm
Slope of grid 8%
Usable load surface 2 x 1.260 x 245 mm
Usable load surface of top shelf: 1185 x 265 mm
Top shelf of wood-based board
Load surface edge 15 mm high
Permanent surface protection
Impact- and scratch-resistant
Grey non-marking thermoplastic rubber tyres on plastic wheel rim with precision deepgroove ball bearings
Thread guard and foot guard
2 EasySTOP swivel castors and 2 fixed castors.
| Colour: | RAL 7016 |
|---|---|
| Dimensions - width x depth x height (mm): | 1370 x 800 x 1585 |
| Load capacity (kg): | 500 |
| Loading Surface - width x depth (mm): | 1260 x 2 x 245 |
| Weight (kg): | 97,5 |
| Wheel width (mm): | 40 |
| Wheel Ø (mm): | 200 |
