Sheet-material trolley (without tubular support)
Plattenwagen (ohne Bügel)

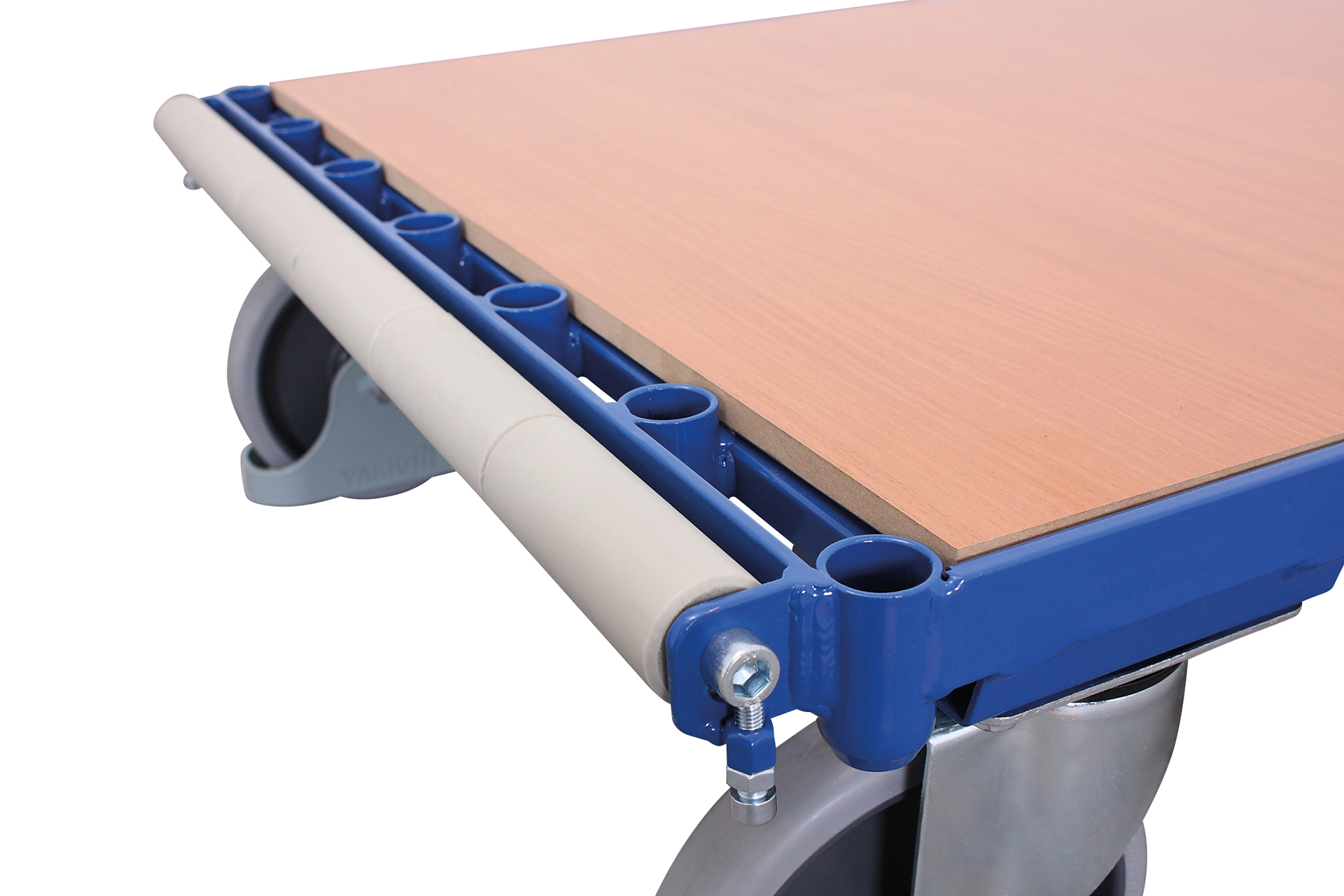

The Plattenwagen (ohne Bügel) offers safe, effortless handling of heavy panels thanks to its robust welded steel construction and durable wood-based load surface. The six-part height-adjustable plastic approach roller with 7 positions ensures smooth loading, while the 95 mm clearance between supports keeps material securely in place.
Grey, non-marking thermoplastic rubber tyres with precision deep-groove ball bearings provide quiet, smooth running. For maximum safety, the trolley features the patented EasySTOP braking system, centrally actuated to lock 1 swivel and 1 fixed castor on one side, delivering reliable, controlled stopping at any time.
| Colour: | RAL 5010 |
|---|---|
| Dimensions - width x depth x height (mm): | 1315 x 800 x 295 |
| Load capacity (kg): | 500 |
| Loading Surface - width x depth (mm): | 1195 x 800 |
| Weight (kg): | 34,0 |
| Wheelset: | Thermoplastisches Gummi |
| Wheel width (mm): | 40 |
| Wheel Ø (mm): | 200 |
