Sheet-material trolley (without tubular support)
Plattenwagen (ohne Bügel)
Robust, flexible and safe – this platen trolley without tubular supports is ideal for professional handling of panels, boards and sheets.
- Welded steel construction with high load capacity and dark grey wood-based load surface
- Height-adjustable six-part plastic approach roller with 7 positions for flexible support setup (95 mm clearance)
- Durable, impact- and scratch-resistant surface for intensive everyday use

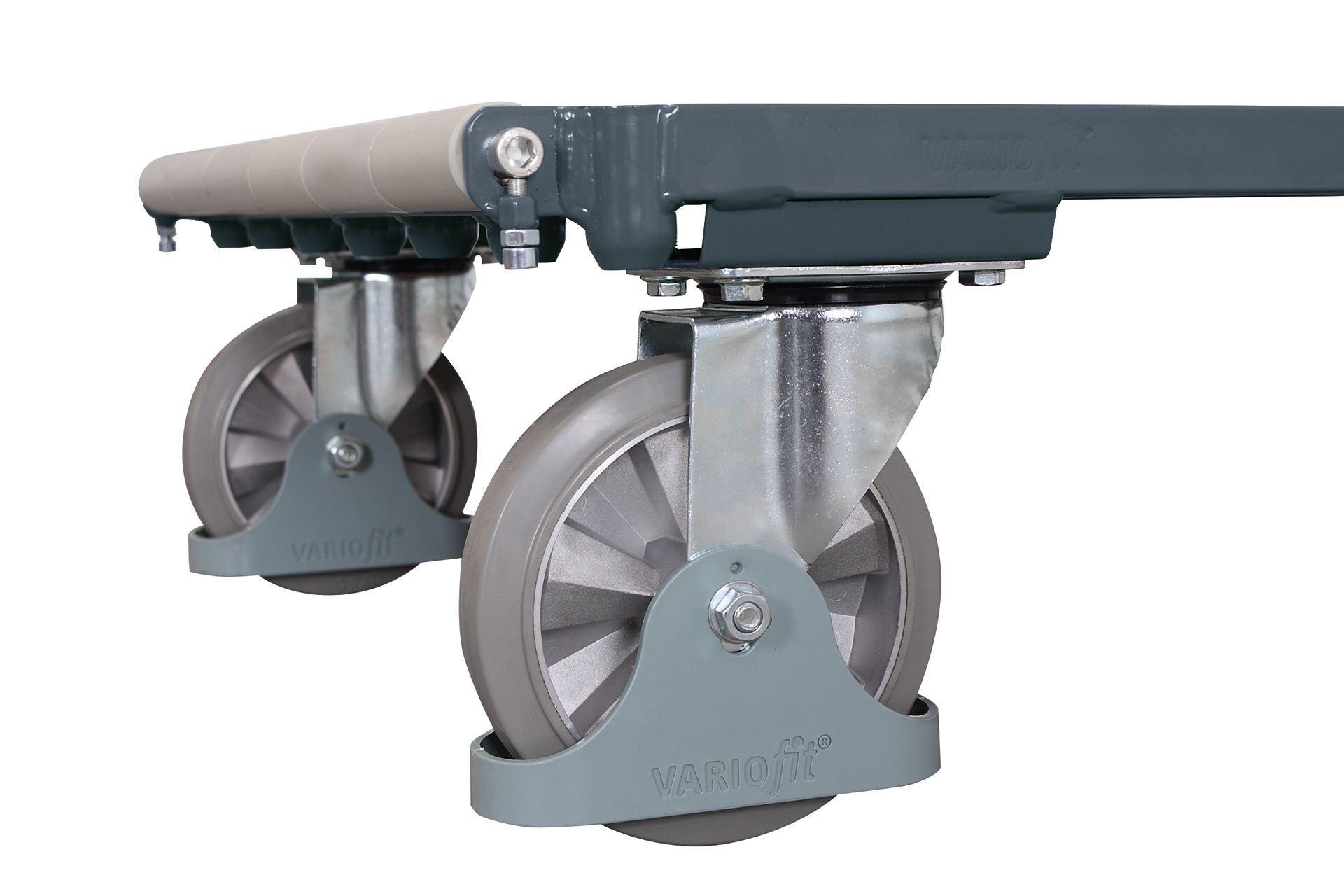

- Grey elastic solid-rubber tyres on cast aluminium rims with precision deep-groove ball bearings
- Thread and foot guards for extra operator safety
- 2 swivel and 2 fixed castors with centrally operated, patented EasySTOP braking system (1 swivel and 1 fixed castor braked on one longitudinal side)
| Colour: | RAL 7016 |
|---|---|
| Dimensions - width x depth x height (mm): | 1315 x 800 x 295 |
| Load capacity (kg): | 1200 |
| Loading Surface - width x depth (mm): | 1195 x 800 |
| Weight (kg): | 36,5 |
| Wheelset: | Elastikvollgummi |
| Wheel width (mm): | 50 |
| Wheel Ø (mm): | 200 |
